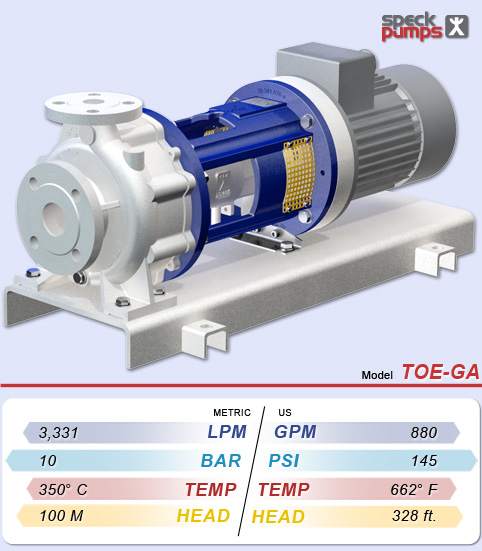

Speck TOE-GA Series Centrifugal Heat Transfer Pump

TOE-GA

The TOE-GA Series Centrifugal Heat Transfer Pumps from Speck Pumps are horizontal direct-coupled pumps with end suction. The Direct-Coupled design eliminates the need to align pump and motor shafts and eliminates the chance for shaft misalignment. The TOE Series is also available with a magnetic coupling.

The design also eliminates any temperature misalignment. The pump comes standard with a mechanical shaft seal design. Suction and Discharge mounting flanges for the GA Series are ANSI and the casing is made from spheriodal graphite cast iron. Speck Centrifugal pumps are designed for the transport and re circulation of organic heat transfer oils on mineral and/or synthetic basis as well as hot water heat transfer applications throughout the world.

The robust design and construction of Speck pumps is due to a rigorous quality control system that begins at their manufacturing facilities where ISO:9001 requirements met throughout the entire manufacturing process resulting in a superior hot oil transfer pump. The design of Speck Thermal Transfer centrifugal oil pumps allows for a pumping media that has little or no-abrasive contaminants and a pumping media that does not chemically attack the materials of construction of the Speck Pump.

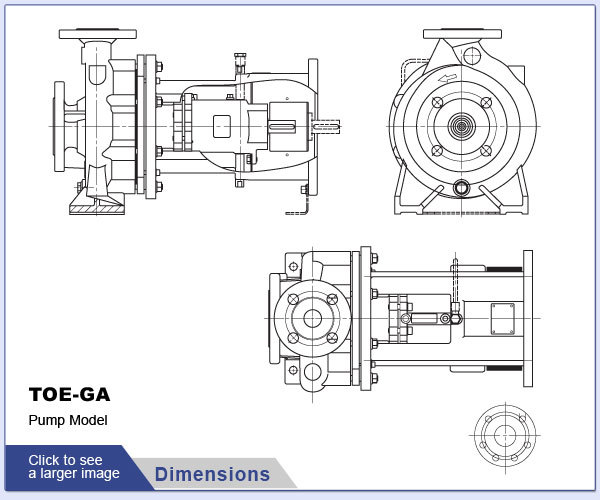

SPECK - TOE-GA - Pump Dimensions

Speck Centrifugal Thermal Transfer Pumps are available to work in a variety of industries where the movement of heated pumping media is required. Facilities with large baking and frying ovens, heated agitator and mixing tanks, flat glass production, solar power generation and the color and dye industry all have systems that would benefit from a Thermal Transfer Centrifugal Pump.

If you don’t see your industry here please contact a Shanley Pump and Equipment Representative today at 847-439-9200 and see if we do have a pump that’s right for you!

Dimensions IconCurves Icon

SPECK Pump Series quick links

Speck TOE-GA Heat Transfer Pump

Speck TOE-GA Centrifugal Heat Transfer Pump

Speck - TOE-GA Series Pump Type

  • Centrifugal Thermal Oil PumpStandard Mechanical SealClockwise Impeller Rotation
  • Centrifugal Thermal Oil Pump
  • Standard Mechanical Seal
  • Clockwise Impeller Rotation

Speck - TOE-GA Series Materials

  • Speck TOE-GA Steel ComponentsSpeck TOE-GA Spheroidal Cast Iron Body
  • Steel
  • Spheroidal Cast Iron

Speck - TOE-GA Series Industries

  • Speck TOE-GA Glass Manufacturing Industry PumpSpeck TOE-GA Solar Industry PumpSpeck TOE-GA Plant Engineering PumpSpeck TOE-GA Leather and Rubber Manufacturing Industry Pump
  • Glass Manufacturing Industry Pump
  • Solar Industry Pump
  • Plant Engineering Pump
  • Leather and Rubber Manufacturing Industry Pump

Speck - TOE-GA Series Applications

  • Speck TOE-GA Steel Manufacturing Applications PumpSpeck TOE-GA Boiler Feed Applications PumpSpeck TOE-GA Heat Transfer/Exchange Pumping Applications
  • Steel Manufacturing Applications Pump
  • Boiler Feed Applications Pump
  • Heat Transfer/Exchange Pumping Applications
