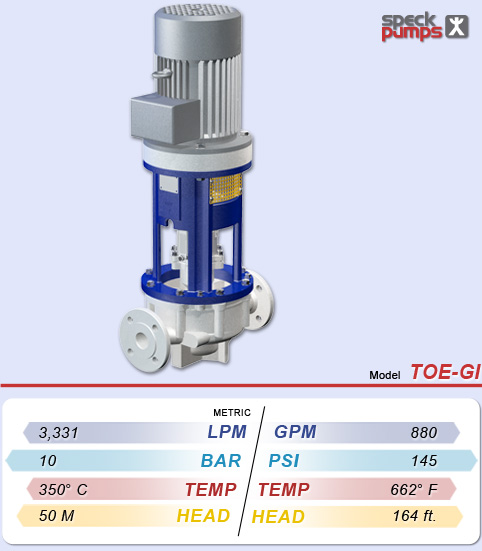

Speck TOE-GI Series Centrifugal Heat Transfer Pump

TOE-GI

The Speck Pumps TOE-GI Series Centrifugal Heat Pumps are a vertical "inline" pump design for applications where space is an issue. The direct-coupled design of the TOE-GI eliminates the need to align the pump and motor shafts and eliminates any chance of shaft misalignment. The TOE Series is also available with a sealless design, magnetic coupling. Standard pumps are supplied with a mechanical seal design. Unit is direct-coupled to a flange-mounted motor.

The close coupled design also eliminates any misalignment caused by temperature. The pump comes standard with a mechanical shaft seal design. Suction and Discharge mounting flanges for the GA Series are ANSI and the casing and impeller is made from spheriodal graphite nodular cast iron.

Speck Centrifugal heat transfer pumps are designed for the transport and re circulation of organic heat transfer oils on mineral and/or synthetic basis for heat transfer applications throughout the world.

The robust design and construction of Speck Pumps is due to a rigorous quality control system that begins at their manufacturing facilities where ISO:9001 requirements met throughout the entire manufacturing process resulting in a superior hot oil transfer pump.

The design of Speck Thermal Transfer pumps allows for a pumping media that has little or no-abrasive contaminants and a pumping media that does not chemically attack the materials of construction of the Speck Pump.

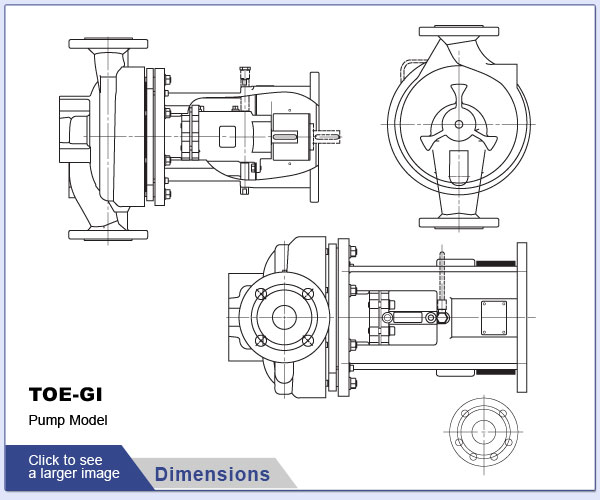

SPECK - TOE-GI - Pump Dimensions

Speck Centrifugal Thermal Transfer Pumps are available to work in a variety of industries where efficient heating is required for the manufacturing process. The Speck Pump provides the movement of heated thermal oil.

Boiler Applications, facilities with large baking and frying ovens, heated agitator and mixing tanks, flat glass production, solar power generation and the color and dye industry all have systems that would benefit from a Speck Thermal Centrifugal Pump.

If you don’t see your industry here please contact a Shanley Pump and Equipment Representative today at 847-439-9200 and see if we do have a pump that’s right for you!

Dimensions IconCurves Icon

SPECK Pump Series quick links

SPECK TOE-GI Centrifugal Thermal Pump

Speck TOE-GI Centrifugal Heat and Thermal Fluid Transfer Pump

Speck - TOE-GI Pump Type

  • SPECK TOE-GI Centrifugal Thermal PumpSPECK TOE-GI Centrifugal Thermal Pump with Mechanical SealSPECK TOE-GI Centrifugal Thermal Pump with Clockwise Rotation
  • Centrifugal Pump
  • Mechanical Seal
  • Clockwise Pump Rotation

Speck - TOE-GI Materials

  • SPECK TOE-GI Centrifugal Thermal Pump is made with SteelSPECK TOE-GI Centrifugal Thermal Pump is made with Cast Spheroidal Iron
  • Steel
  • Cast Iron

TOE-GI Industries

  • SPECK TOE-GI Centrifugal Thermal Pump is ideal for the Baking IndustrySPECK TOE-GI Centrifugal Thermal Pump is an ideal Solar PumpSPECK TOE-GI Centrifugal Thermal Pump for Plant Engineering ApplicationsSPECK TOE-GI Centrifugal Thermal Pump for Paint and Dye Manufacturing
  • Baking Industry Pumps
  • Solar Industry Pumps
  • Plant Engineering Pumps
  • Paint/Dye Industry Pumps

TOE-GI Applications

  • SPECK TOE-GI Centrifugal Boiler Feed Thermal PumpsSPECK TOE-GI Centrifugal Thermal Pumps for Fried Food and Baking ApplicationsSPECK TOE-GI Centrifugal Thermal Oil Pumps
  • Boiler Feed Pumping
  • Baking and Frying Pumps
  • Thermal Oil Pumping
