Speck TOE-GN Series Centrifugal Thermal Transfer Pump

TOE-GN

The Speck TOE-GN Series Centrifugal Pumps are horizontal, foot-mounted heat transfer pumps with end suction and top discharge. The TOE Series is also available with a magnetic coupling. Pumps are supplied with a mechanical seal design. Unit is coupled to a standard motor. This pump series dimensionally interchanges with many other thermal oil pump manufacturers.

The pump comes standard with a mechanical shaft seal design. Suction and Discharge mounting flanges for the GN Series are ANSI 150# RFB16.5 and the casing is made from nodular spheriodal graphite cast iron. Suction and Discharge mounting flanges are ANSI and are drilled to ANSI specifications.

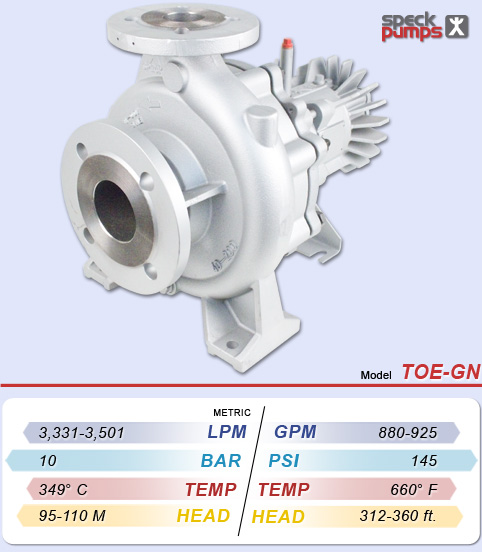

Speck TOE-GN Centrifugal Thermal Transfer Pumps are designed for the pumping of organic heat transfer oils on mineral and/or synthetic heat transfer applications throughout the world. The TOE-GN performance data is impressive as well. 880925 GPM, and 312ft. to 360ft. of Head with oil at temperatures of 660°F.

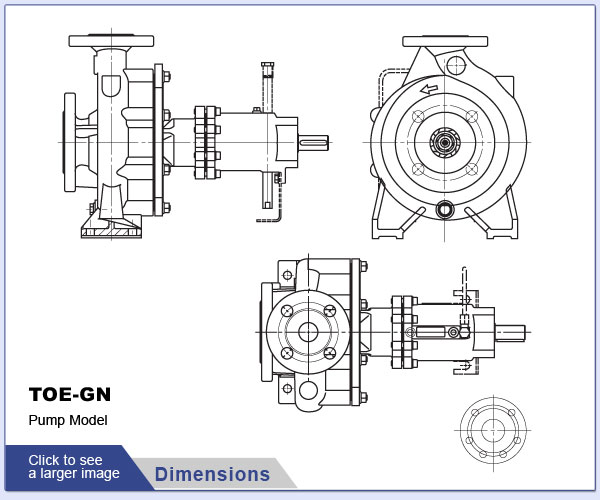

SPECKTOE-GN Pump Dimensions

The robust design and construction of Speck pumps is due to a rigorous quality control system that begins at their manufacturing facilities where ISO:9001 requirements met throughout the entire manufacturing process resulting in a superior thermal heat transfer pump. The design of Speck Thermal Transfer pumps allows for a pumping media that has little or no-abrasive contaminants and a pumping media that does not chemically attack the materials of construction of the Speck Pump in use.

Speck Centrifugal Thermal Transfer Pumps are available to work in a variety of demanding industries where the movement of heated pumping media is required on a daily basis. Facilities with large baking and frying ovens, heated agitator and mixing tanks, flat glass production, solar power generation and the color and dye industry all have systems that would benefit from a Speck Thermal Centrifugal Pump.

If you don’t see your industry here please contact a Shanley Pump and Equipment Representative today at 847-439-9200 and see if we do have a pump that’s right for you!

SpeckTOE-GN

Speck TOE-GN Angled View Speck TOE-GN Side View Speck TOE-GN Top View
Dimensions IconCurves Icon

SPECK Pump Series quick links

Speck TOE-GN Thermal Transfer Pump

Speck TOE-GN Centrifugal Thermal Tansfer Pumps

SpeckTOE-GN Pump Type

  • Speck TOE-GN Centrifugal Thermal Oil PumpSpeck TOE-GN Mechanical SealSpeck TOE-GN Clockwise Impeller Rotation
  • Centrifugal Thermal Oil Pump
  • Mechanical Seal
  • Clockwise Impeller Rotation

SpeckTOE-GN Series Materials

  • Speck TOE-GN Steel Pump ComponentsSpeck TOE-GN Spheroidal Cast Iron Pump Body
  • Steel Pump Components
  • Spheroidal Cast Iron Pump Body

SpeckTOE-GN Series Industries

  • Speck TOE-GN Baking and Foodstuff Frying PumpSpeck TOE-GN Paint and Chemical Dye Manufacturing PumpSpeck TOE-GN Glass Manufacturing PumpSpeck TOE-GN Solar Energy Pumping Applications Pump
  • Baking and Foodstuff Frying
  • Paint and Chemical Dye Manufacturing
  • Glass Manufacturing
  • Solar Energy Pumping Applications

SpeckTOE-GN Series Applications

  • Speck TOE-GN Heating Tank Mixing Applications PumpSpeck TOE-GN Steel Manufacturing Applications PumpSpeck TOE-GN Heat Transfer and Exchange Applications Pump
  • Heating Tank Mixing Applications
  • Steel Manufacturing Applications
  • Heat Transfer and Exchange Applications
