EDUR LBU Series High-Pressure Multistage Centrifugal Pump

LBU

The EDUR LBU High-Pressure Multistage Centrifugal Booster Pump uses a horizontal, multistage design of multiple impellers in a segmented pump design on a central shaft to increase flow and pressure.

The LBU Series is a professional's choice for the pumping of clean and slightly polluted liquids. The benefits of the multistage design coupled to the reliability of the EDUR brand allows a wide variety of application industries such as booster systems, irrigation, boiler feed and water treatment and washing plants and dissolved air flotation (DAF) applications.

The segmental design of the LBU Multistage Centrifugal Pump comes in a traditional horizontal setup with Vertical options also available. The LBU's compact design lets this pump go into many spaces a traditional multistage pump would not fit.

The design also allows for either single or double acting mechanical seals, gland packing or even magnetic coupling for your Multistage Booster Pump. The flexibility of the design allows for many combinations to achieve the perfect flow and pressure rates for your pumping application.

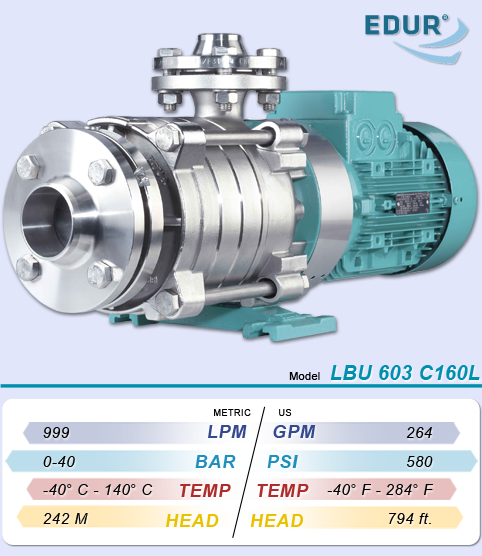

The EDUR LBU Series High-Pressure Multistage Centrifugal Booster Pump Series operates at differential pressures up to 580 PSI with a temperature range of -40°F to +284°F with a Viscosity of 115 centistokes with a maximum series flow-rate of 264 GPM.

The LBU Series unique impeller design offers optional positions of its flanges as well as having the ability act as a liquid-gas pump by being able to transport gases within the liquids without cavitation. For more information about this gas-handling feature, please contact Shanley Pump and Equipment, Inc.

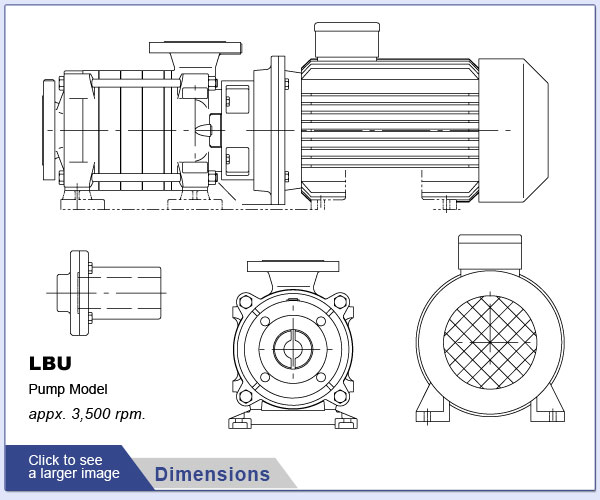

EDUR LBU 603 C160L Pump Dimensions

The LBU Series is available in Cast Iron, Bronze, Stainless Steel, and super duplex stainless steel for your pumping application needs.

If you are unsure which EDUR LBU Series High-Pressure Multistage Centrifugal Booster Pump is the right style for you, please ask your Shanley representative for more information to help you make the best selection.

EDUR LBU

EDUR LBU Alternative Pump ViewEDUR LBU Alternative Pump ViewEDUR LBU Alternative Pump View

EDUR LBUX Pump Cutaway Views

EDUR LBUX Alternative Pump ViewEDUR LBUX Alternative Pump ViewEDUR LBUX Alternative Pump View

Dimensions IconCurves Icon

EDUR Pump Series quick links

EDUR LBU Series Multi-Stage Centrifugal Pump

EDUR LBU Series High-Pressure Multistage Centrifugal Booster Pump

EDUR LBU Series Pump Type

  • Centrifugal PumpMulti-Stage PumpClockwise Pump Impeller RotationMechanical Pump Seal(Single or Double)Magnetic Pump Seal(Optional)Horizontal Pump Installation
  • Centrifugal Pump
  • Multi-Stage Pump
  • Clockwise Pump Impeller Rotation
  • Mechanical Pump Seal(Single or Double)
  • Magnetic Pump Seal(Optional)
  • Horizontal Pump Installation

EDUR LBU Series Materials

  • 316 Stainless SteelCast IronBronze Pump Components Available
  • 316 Stainless Steel
  • Cast Iron
  • Bronze Pump Components Available

EDUR LBU Series Industries

  • Irrigation Pumping SystemsFertilizer Industry PumpingHigh-Purity Liquid PumpingPlant Engineering Pumping
  • Irrigation Pumping Systems
  • Fertilizer Industry Pumping
  • High-Purity Liquid Pumping
  • Plant Engineering Pumping

EDUR LBU Series Applications

  • Boiler Feed Pumping ApplicationsHigh-Pressure Pumping ApplicationsLiquid-Gas Pumping ApplicationsClear Liquids Pumping ApplicationsSlightly Polluted Liquid Pumping
  • Boiler Feed Pumping Applications
  • High-Pressure Pumping Applications
  • Liquid-Gas Pumping Applications
  • Clear Liquids Pumping Applications
  • Slightly Polluted Liquid Pumping
