Welcome to the Shanley Pump Iconology description page. here you will find descriptions to all the different Icons we use in describing our pumps.

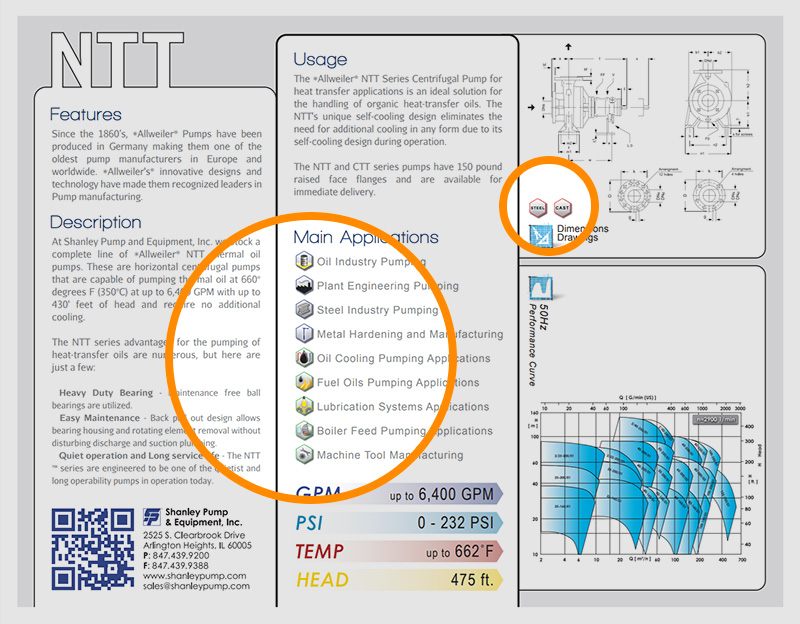

Each Icon is to be used simply as a general guideline for the relative performance or character strengths of each pump represented and not as a complete definition of the pumps capability.
If you have any questions about a particular application or pump, please feel free to contact us at your convenience.
Please have the pump model and your specific application information ready. One of our factory trained sales engineers will be glad to assist you.
Pump Type Iconology
A centrifugal pump is a rotodynamic pump that uses a rotating impeller to create flow by the addition of energy to a fluid.
A progressive cavity pump is a positive displacement pump that transfers fluid by means of the progress, through the pump, of small, fixed shape cavities as its rotor is turned.
A screw pump is a positive displacement pump that uses one or several screws to move fluids or viscous fluids along the screw(s) axis.
A screw pump is a positive displacement pump that uses one or several screws to move fluids or viscous fluids along the screw(s) axis.
A screw pump is a positive displacement pump that uses one or several screws to move fluids or viscous fluids along the screw(s) axis.
The Peripheral pump produces large head at comparatively small flow rates while having an ability to entrained transport gas es without slowing or impedeing the liquid flow medium. Solids in the Pump Medium should be avoided.
Lobe pumps are similar to external gear pumps in operation in that fluid flows around the interior of the casing. The lobes do not make contact.
Auger Pumps work with an auger in a hopper that moves large product such as spent grains. Progressive Cavity Pumps use Augers in their designs.
Pump Impeller has Clockwise Rotation on Shaft for operation.
Pump Impeller has Counter Clockwise Rotation on Shaft for operation.
Pump can be run in either direction for flow.
Mechanical Seals use both rigid and flexible contact elements at a sealing interface that slide on each other, allowing a rotating element to pass through a sealed case.
Double Mechanical Seals use both rigid and flexible contact with a barrier liquid in the cavity between the two seals that is pressurized.
Magnetic drive centrifugal pumps have no seals and are leak proof. This makes the pumps ideal for pumping hazardous, toxic, explosive, aggressive or valuable fluids.
Standard Pump Seals come as Single or Double Spring models with two rotating hard surfaces held in place by spring pressure such carbide or ceramics as a sealing agent.
A Pump with a built-in electric motor with the motor drive and pump impeller on the same shaft.
Braided synthetic or natural fibers used as a sealing agent around pump shafts that is excellent for general service applications.
A single-stage pump has one dual suction impeller designed to take water in both sides of the impeller providing discharge flows to all discharge gates.
Multiple impellers operating side by side on a common shaft by design, which gives the operator a choice of selecting a volume or pressure option from the pump.
Pump in its current configuration is designed to be mounted horizontally.
Pump in its current design is designed for a vertical mounting (upright).
A pump that mixes air with water. The pump then removes the air and moves water only, just like a standard centrifugal pump allowing for limited priming.
Pump designed to operate at low pressures for optimal fluid movement.
Pump that works at standard operating pressures for optimal fluid movement.
Pump that works at high pressures for optimal movement of fluid such as oils and hydraulic fluids.
Pump designed to operate quietly with limited decibels form its operation. Used in indoor situations generally.
Pump is designed to limit outside movement due to operation. These pumps are also generally low noise as well.
Pump Materials Iconology
Polyvinyl chloride: Used in pumps where corrosive materials are present.
Polyethylene: Standard strength plastic used in pump construction where corrosive materials are present.
High strength plastic used for its solvents and acids resistance capability.
High strength plastic used in pump construction.
Known as Halar, used in high friction pumping applications.
Teflon based plastic. Useful for resistance to salt spray or other outside elements.
Teflon Plastic. Used for friction reduction.
Copy here...
alloyed metal that is used for pump bodies and other pump components due to its low cost to strength ratio.
Iron and Carbon combination that allows for high strength components from pump bodies to impellers. Steel is one of the most common components of pumps today.
Does not corrode, rust or stain with water. High strength steel used for wetted components of pumps such as shafts and impellers. Also used in sanitary pumping applications.
Does not corrode, rust or stain with water. High strength steel used for wetted components of pumps such as shafts and impellers. Also used in sanitary pumping applications.
Stainless Steel with a unique mixture of ore components for added strength and resistance to chemical attack.
Marine Grade Stainless Steel used for the most difficult of pumping applications and component manufacturing.
Stainless Steel with an extremely low carbon content. Good for pumping uses where pitting occurs. A good steel for hygienic applications.
904L Stainless Steel is a non-stabilised low carbon high alloy austenitic stainless steel. The addition of copper to this steel gives it greatly improved resistance to strong reducing acids.
alloy metal consisting of copper and tin. Used primarily for the construction of centrifugal pump impellers.
Pump Industries Iconology
Pump is designed to support cooling applications.
Pump is designed to handle hot oils such as deep frying machines.
Pump is made from sterile materials and is used for beverage and brewery applications.
Pump is generally CIP capable and made of high quality stainless steel for medical applications.
Pump is designed for brewing and brewery applications. Made from stainless steel and generally set up for CIP (clean in place).
Pump supports operations in the casting industry. Generally heavy-duty.
Pump is designed for resistance to chemical attack and sterility. Generally high grade plastics and stainless steel in construction.
Pump is designed for general pumping applications such as clear fluids without solids content present
Pump is designed to work with cooling systems and applications where a heavy duty cooling pump is required such as refrigeration and air conditioning.
Pump is designed for sterile pumping applications for cosmetics and perfumes. Stainless steel construction with CIP capability generally.
Pump is designed for heavy duty pumping of thickened fluids and thermal resistance of heavy fluids used in the energy generation process.
Pump is designed to work with strongly reactive acids and chemical compounds used in the manufacturing of fertilizers such as nitrogen and phosphates.
Pump is designed for use in filtration systems with low or no particulate present in the pumped medium.
Pump is designed for sanitary application processing from stainless steels and comes with CIP capable fittings either.
Pump is designed to work with clear or non-polluted liquids such as standard water and general non acidic fertilizers.
Pump is designed for general purpose pumping applications.
Pump is designed to work with thermal fluids such as hot oils used in glass production.
Pump is designed with high quality stainless steel for use in sterile pumping applications.
Pump is designed to work in the pumping of highly viscous fluids such as hydraulic fluids, oils and thickened pumping mediums where solids are not present.
Pump is designed for industrial pumping applications of standard fluids such as water and water mixes.
Pump is designed to work with thermal fluids in its operations such as oils or mix chemicals.
Pump is designed to handle salt water corrosion and other corrosives generally found onboard ships. Can also be used for fuel oils etc.
Pump is designed for sterile operations pumping blood, medicines or other fluids requiring a sterile environment. Pump is CIP able.
Pump is designed for the pumping of oils and other thickened fluids used in steel manufacturing.
Pump is designed for handling acids and other corrosives present in the mining industry that would normally attack a standard pump.
Pump is designed for stringent code use and the handling of both cooling and irradiated waters.
Pump is designed for the pumping of heavy fluids such as crude or petroleum based lubricants such as oils and other thickened lubricant fluids.
Pump is designed for handling of fluids such as paints or lacquers. Pump is CIP able.
Pump is designed for handling of solids content. Generally a progressing cavity pump. Used for Paper Pulp and Black Liquor removal.
Pump is designed for use and application in the pumping and processing of poisons and other toxic fluids used in the pesticide industry.
Pump is designed for sterile pumping applications and is made of stainless steel with clean in place fitting either standard or as an option.
Pump is designed to handle developing fluids and other chemicals associated with photographic print making.
Pump is designed for robust general purpose pumping applications in a factory of production facility setting. Strong construction and chemical compatibility.
Pump is designed for work in the plastics manufacturing industry. Either in supply or cooling applications.
Pump is designed for use in general purpose manufacturing machinery for dependable service and longevity.
Pump is designed for use with chilled or thermal fluids associated with refrigeration.
Pump is designed for use in sanitary applications where sterility is a concern. Pump is generally made of Stainless Steel with CIP fittings.
Pump is designed to work in heavy construction environment. Not affected by environment or salt spray. A solid industrial pump.
Pump is designed for general application pumping of clear or slightly polluted liquids without solids content.
Pump is designed for high temperature applications and performance. Molten salts, high temperature oils and other thermic transfer fluids.
Pump is designed for industrial use.
Pump is designed for surface cleaning applications, solvent pumping and higher pressure pumping.
Pump is designed for thermal transfer applications such as oils or viscous fluids and can operate with hot fluids.
Pump is designed for application work in the wastewater industry. From polymer injection to general application pumping.
Pump is designed for clear or slightly polluted water pumping applications with limited to no solids content in the pumped medium.
Pump Applications Iconology
Pump has working applications in the pumping of abrasives or abrasive particles. Pump has ability to process small particulate matter.
Pump has working applications in Aquariums and Seawater pumping. Can be used successfully in commercial pumping applications.
Pump has working applications in the Baking industry with the transport of frying oils and other thermal fluids used in the baking industry.
Pump has working applications in Boiler feed due to high pressure capability.
Pump has working applications in the pumping of brackish or slightly polluted water without heavy particulate.
Pump has working applications in the sanitary field of food processing or bio technical or medical. Pump can be easily disassembled for cleaning with CIP attachments.
Pump has working applications in scavenging pumping. Works well in commercial large air conditioning systems for the scavenging of condensate water runoff.
Pump has working applications in cooling and light thermal transfer pumping. Designed primarily for the movement of cooling fluids and water.
Pump has working applications with corrosives and acids which would destroy other pumps. Usually Plastic lined or manufactured from milled plastic for chemical resistance.
Pump has working applications in the field of Dissolved Air Flotation (DAF) and can handle entrained air mixed with the pumped medium without hurting the pump.
Pump has working applications in sterile manufacturing of foodstuffs. Pump is generally made from Stainless steel and comes with CIP fitting capability.
Pump has working applications with well drilling pumping. Pump can be used for the pumping of drilling mud and other thickened fluids. Generally a Progressive Cavity Pump.
Pump has working applications in desalination plants. Can be used for the pumping of salt or brackish waters.
Pump has working applications in working with commercial and industrial grade filter systems. Heavy duty operation and pumping capability.
Pump has working applications in the food sterilization industry. The pump can handle entrained gases such as ozone which is used in sterilization after picking.
Pump has working applications in the pumping of fuel oil or other thickened fluids.
Pump has working applications in fuel oil transfer applications such as dockside or from truck to boat.
Pump has working applications with gas scrubbing technology.
Pump has working applications in the mixing of differing temperature fluids and can withstand extremes in temperature shift.
Pump has working applications in heat transfer systems for removing heat from thermal transfer fluids.
Pump has working applications working with the pumping of both hot and cold water.
Pump has working applications in the pumping of thickened or viscous fluids such as hydraulic oils and cutting fluids.
Pump has working applications working with industrial waste streaming from facilities or factories. Pump can handle contaminated fluids easily.
Pump has working applications in the pumping of thin thickened fluids such as hydraulic and lubricating oils.
Pump has working applications working with entrained gases into he pumped fluids. Pump is an ideal candidate for a DAF system.
Pump has working applications working with the pumping of lubricating fluids through filtration systems.
Pump has working applications in the pumping of lubricating oils.
Pump has working applications in pumping lubricating oils in lubrication systems and equipment.
Pump has working applications working with cutting oils and other thickened fluids in an industrial work environment.
Pump has working applications in working with Odors or control systems such as sterilizers and Ozone pumping.
Pump has working applications for use in oil cooling equipment systems in both standard and industrial configurations.
Pump has working applications with oil scavenging and scum removal units.
Pump has working applications in pig farming with waste removal and/or water supply for food and cleaning.
Pump has working applications in the wastewater industry with polymer injection units for waste treatment and floc collection.
Pump has working applications in Poultry Farming with Waste removal and/or food and watering uses.
Pump has working applications in Recirculation systems such as gray water and brackish water.
Pump has working applications in the pumping of seawater or brackish water and is not affected by salts.
Pump has working applications in slaughter house pumping with blood removal, feeding and watering of animals and general water supply.
Pump has working capabilities of having solids in the pumped medium without losing pumping capability. Can be used in DAF and wastewater pumping systems.
Pump has working applications in the brewing and wine industry with the removal of spent grain, mash tun and wine must. Pump is generally a Progressive Cavity Hopper Pump System.
Pump has working applications in steel manufacturing. Pump is robust and can handle working in an industrial environment.
Pump has working applications in the surface treatment of glass, steel and plastics with oils or cooling waters being pumped.
Pump has working applications pumping thermal oil through circulation systems in industrial plants.
Pump has working applications turbine systems. Can be used to pump thin oils or fluids with ease.
Pump has working applications pumping thickened viscous fluids such as oils and other thickened pumping mediums. Pump is generally Screw type.
Pump has working applications in Wastewater pumping.
Pump has working applications in clean water circulation pumping systems.
Pump has working applications working with wells and well water pumping systems. Pump is also available for truck mount for well drilling.
Pump has working applications in the field of wind power generation with the pumping of viscous fluids.
