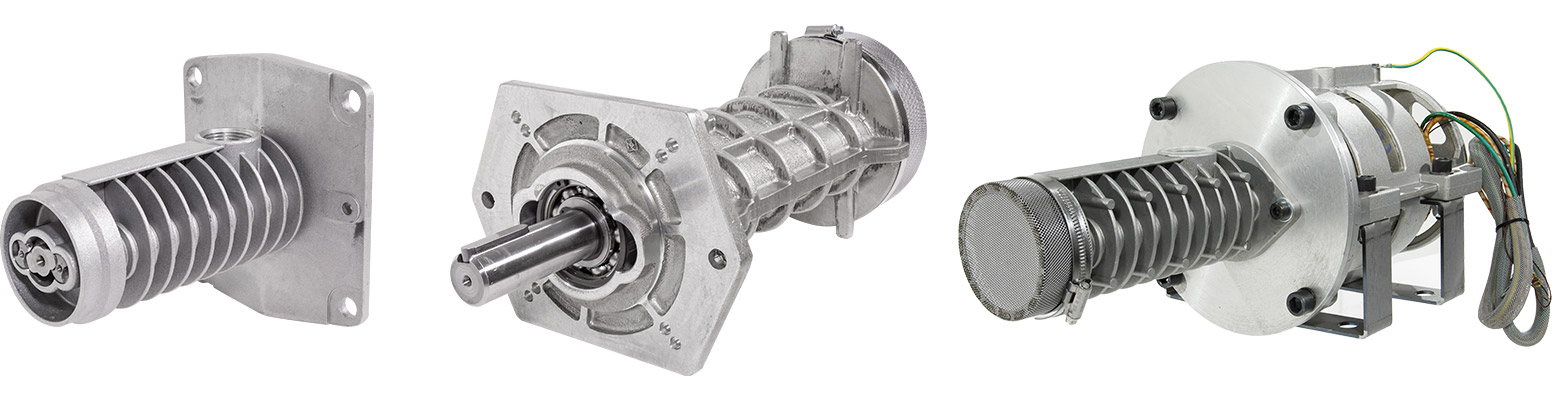

SEIM PA Series Submersible Screw Pumps

Seim PA Pump

The SEIM PA Series Submersible 3-Screw Pump is SEIM's best seller worldwide. These economical screw pumps are designed for submerged applications in the lube oil or a hydraulic oil tank.

This is ideal for use in difficult locations where a normal pump will not fit. It’s simple yet robust construction ensure years of operability with minimal complications.

The SEIM PA Series Submersible Screw Pump operates at 2.6 to 224 GPM at pressures up to 1160 PSI at a temperature range of 32° to 212° F.

The SEIM PA Series 3-screw pump is ideal for:

  • Lubrication Systems
  • Filtration Systems
  • Recirculation Systems
  • Cooling Systems
  • Hydraulic Systems
  • Elevator Systems

SEIM screws pumps are volumetric self-priming pumps suited to handle oils and fluids with a minimum lubricating property. The pumps design makes them intrinsically reliable and efficient in their applications.

Their functional characteristics of a Screw pump are:

  • Very low noise levels
  • Wide range viscosity compatibility
  • High rotation rates = minimizing the size and cost of the pump
  • No vibrations
  • Minimum sensitivity to particle pollution
  • High self-priming capacity
  • Special design for systems with entrained air in the lubricant

For over 30 years SEIM has been supporting the pumping industry with their innovation and expertise in the pumping and handling of oils and viscous chemicals.

Contact a Shanley Pump and Equipment, Inc. representative today by phone at 847-439-9200.

SEIM PA Screw Pump Performance

Model PA with Strainer

US

gpm2.6 - 224
+psi1160*
-psiSubmerged in oil
temp32° F - +212° F

Metric

lpm10 - 850
+bar80*
-barSubmerged in oil
temp0° C - +100° C
*Continuous, 75 bar (1088 psi) peak at 2900 rpm. -= Suction Pressure. += Delivery Pressure.

Model PA with Axial Inlet Flange

US

gpm2.6 - 224
+psi1160*
-psi-7.3 - +145
temp32° F - +212° F

Metric

lpm10 - 850
+bar80*
-bar-0.4 - +2
temp0° C - +100° C
*Continuous, 75 bar (1088 psi) peak at 2900 rpm. -= Suction Pressure. += Delivery Pressure.
