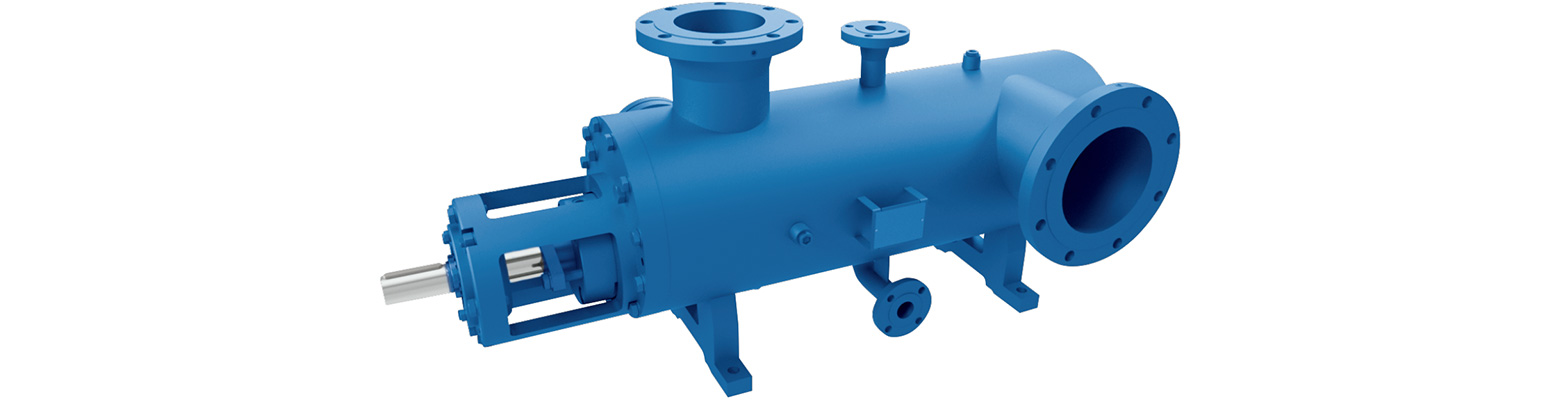

The SEIM PCX-WTG series Twin Screw Pump is ideal for pumping asphalt. It has a longer service life, resulting in no damage from pumping higher viscosities or slugs of cold asphalt. The pump is self priming, has dry run capabilities, and will empty both suction and discharge piping. The PCX-WTG has higher efficiency by using less energy, has a smaller motor and no gearbox, and runs at a direct motor speed. The pump is ideal due to it's cartridge design, and it's internal components can be replaced quickly and easily without disturbing the piping. the PCX-WTG twin screw pump has only one shaft seal and bearing, and is easily serviced. You can choose form many seal options. The fully jacketed pump casing and seal chamber reduces maintenance costs over time. You can also choose an optional built-in safety pressure relief valve. The pump is well balanced, easier to adjust, and has less leakage. Choose the PCX-WTG in cast iron, welded steel, or stainless steel case.

SEIM PCX-WTG Features

• Internally, the pump only has non-wearing, rolling contact between the two screws, and zero contact between the screws and the liner
• Axial loads are balanced, no wear plate or end clearance to adjust, no overhung loads
• Radial loads are compensated for by oversized rotor bushes, which also prevent contact between the screws and the liner
• The PCX-WTG maintenance friendly design incorporates a replaceable cartridge for easy repair, and only one component in inventory
• A full housing jacket ensures thorough heating into the seal chamber, to reduce the frequency of maintenance headaches and costs
• The sealing chamber is under suction pressure, reducing leakage and maintenance costs
• Additionally, the PCX-WTG operates at direct motor speeds, eliminating the need for a gearbox or v-belt driv

Asphalt Pumping Applications

• Unload flux from railcars to tank farm
• Transfer flux from tank farm to preheater
• Transfer flux from preheater to stills
• Transfer oxidized asphalt to storage
• Transfer blown asphalt to plant day tank
• Transfer from day tank to mix tank
• Railcar/truck loading
