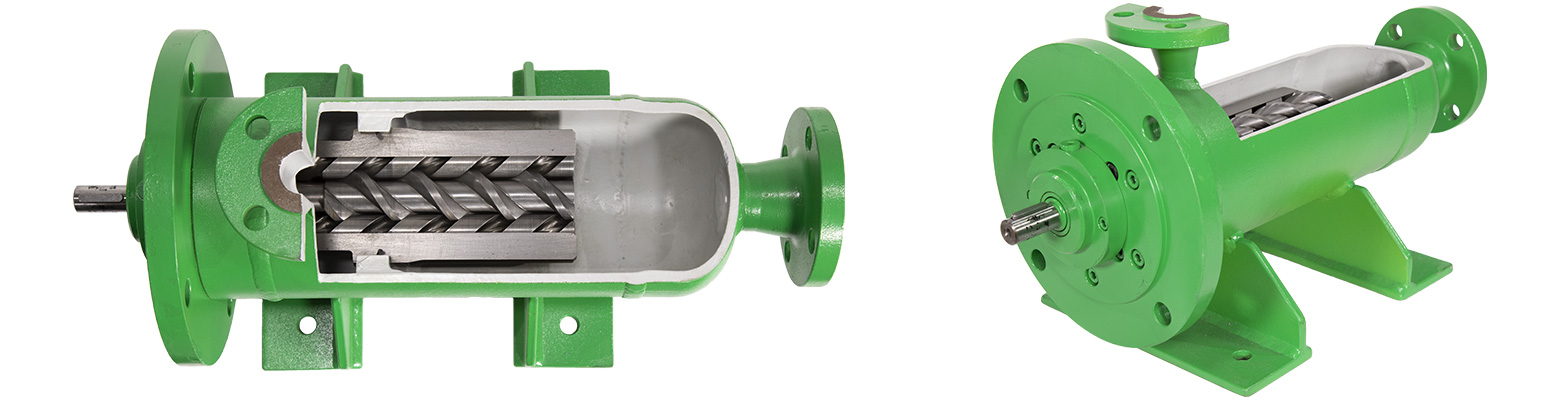

SEIM PCX Series Screw Pump

Seim PCX Pump

The SEIM PCX Series screw pump is a three-rotor screw pump for a low/medium pressure pump for lubrication systems. The PCX pump body is made from carbon steel. Other materials are available depending on your needs and is available standard with ANSI connections; DIN connections are also available upon request.

The PCX's inlet port is available in either axial or radial configurations. During operation, the PCX entraps air bubbles inside it's body to suppress system noise and operates at 2.6 to 740 GPM at pressures up to 450 PSI at a temperature range of 32° to 248° F and is for use with high viscosity fluids.

SEIM screws pumps are volumetric self-priming pumps suited to handle oils and fluids with a minimum lubricating property. The pumps design makes them intrinsically reliable and efficient in their applications.

Pump Characteristics of a Screw Pump:

  • Very low noise levels
  • Wide range viscosity compatibility
  • High rotation rates= minimizing the size and cost of the pump
  • No vibrations
  • Minimum sensitivity to particle pollution
  • High self-priming capacity
  • Special design for systems with entrained air in the lubricant

For over 30 years SEIM has been supporting the pumping industry with their innovation and expertise in the pumping and handling of oils and viscous chemicals. Contact a Shanley Pump and Equipment representative today at 847-439-9200.

SEIM PCX Screw Pump Performance

US

gpm2.6 - 740
+psi450*
-psi-7.3 - +145
temp32° F - +248° F

Metric

lpm9.8 - 2,801
+bar31*
-bar-0.5 - +10
temp0° C - +120° C
*Depending on pump size (Up to 30 bar < size 072 / Up to 20 bar > size 083)
  • 3 Screw Pump Clockwise Rotation Mechanical Seals

SEIM PCX
Series Pump Type

  • Screw Pump
  • Clockwise Rotation
  • Mechanical Seals
  • Carbon Steel Stainless Steel Cast Iron

SEIM PCX
Series Materials

  • Carbon Steel
  • Stainless Steel
  • Cast Iron
  • Icon Icon

SEIM PCX
Series Industries

  • Shipyard Construction
  • Steel Industry
  • Steel Manufacturing Applications Lubrication Applications Turbine Applications

SEIM PCX
Series Applications

  • Steel Manufacturing Applications
  • Lubrication Applications
  • Turbine Applications
